Products > Valves
Sr. No.
Product / Model Name
PDF
Bronze Valves IBR
01
Bronze Globe Steam Stop Valve - ScrewedScrewed in Bonnet, Inside Screw, Rising Stem with Backseat Arrangement, Renewable Stainless Steel Trim, Handwheel Operated, Screwed Female Ends (BSPT), Suitable for Maximum Steam Working Pressure 250 Psig
02

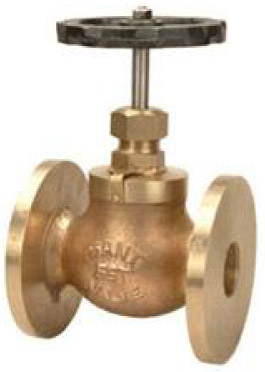

Bronze Globe Steam Stop Valve - Flanged (Table H)Screwed in Bonnet, Inside Screw, Rising Stem with Backseat Arrangement, Renewable Stainless Steel Trim, Handwheel Operated, Flanged Ends (BS:10 Table H), Suitable for Maximum Steam Working Pressure 250 Psig
03
Bronze Horizontal Lift Check Valve - ScrewedScrewed Cover, Renewable Monel/Stainless Steel Trim, Screwed Female BSP Taper Ends, Suitable for Maximum Steam Working Pressure 250 Psig, Maximum recommended Service Temperature 225ºC
04

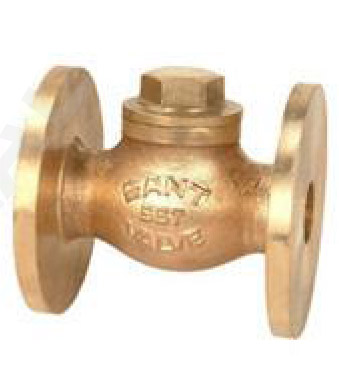

Bronze Horizontal Lift Check Valve - FlangedScrewed Cover, Renewable Monel/Stainless Steel Trim, Flanged Ends (Table H), Suitable for Maximum Steam Working Pressure 250 Psig, Maximum recommended Service Temperature 225ºC
05
Bronze Vertical Lift Check Valve - Monel/SS Parts, ScrewedRenewable Monel/Stainless Steel Seats, Screwed Female (BSPT) Ends, Suitable for Maximum BOP = 250 Psig, Maximum recommended Temperature 225ºC
06
Bronze Vertical Lift Check Valve - Monel/SS Parts, FlangedRenewable Monel/Stainless Steel Seats, Flanged Ends as per BS:10 Table H, Suitable for Maximum BOP = 250 Psig, Maximum recommended Temperature 225ºC
07

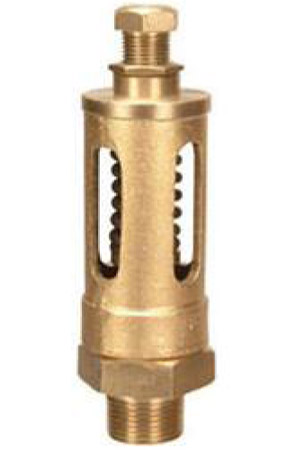

Bronze Pressure Relief Valve - ScrewedSpring Loaded, Open Discharge, Screwed Male BSP Inlet, Suitable for Maximum Set Pressure = 150 Psig
08

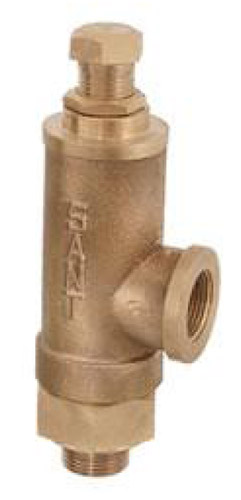

Bronze Pressure Relief ValveSpring Loaded, Angle Discharge, Screwed Male BSP Inlet, Screwed Female BSP Outlet, Suitable for Maximum
Set Pressure = 150 Psig
09

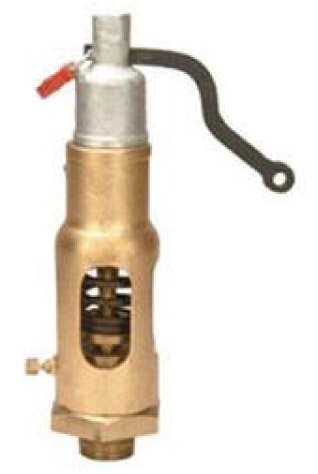

Bronze Popty Pe Safety Valve - OpenSpring Loaded, Open Discharge, Screwed Male BSPT Inlet, Suitable for Maximum Set Pressure 250 Psig (Steam), Maximum Service Temperature = 225ºC.
10

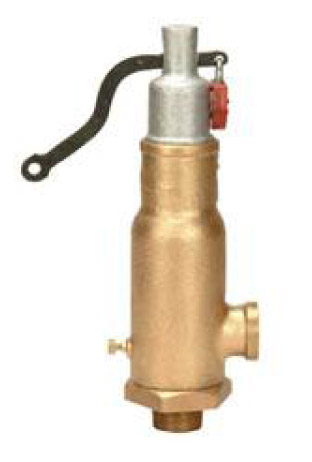

Bronze Popty Pe Safety Valve - EnclosedSpring Loaded, Angle Discharge, Screwed Male BSP Inlet, Screwed Female Ends BSPT Outlet, Suitable for Maximum Set Pressure 250 Psig (Steam), Maximum Service Temperature = 225ºC.
11
Bronze Safety ValveSpring Loaded, Open Discharge, Screwed Male BSPT Inlet, Screwed Female BSPT Outlet, Maximum Set Pressure 150 Psig (Steam), Maximum Working Temperature 225ºC
12

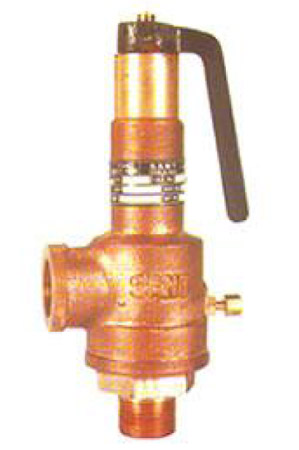

Bronze Safety ValveSpring Loaded, Enclosed Discharge, Screwed Male BSPT Inlet, Maximum Set Pressure 150 Psig (Steam)Maximum Service Temperature = 225ºC.
13
Bronze Combined Cock & Feed Check ValveFlanged Ends as per BS:10 Table H, Suitable for Maximum BOP = 250 Psig, Maximum Service Temperature = 225ºC.
14

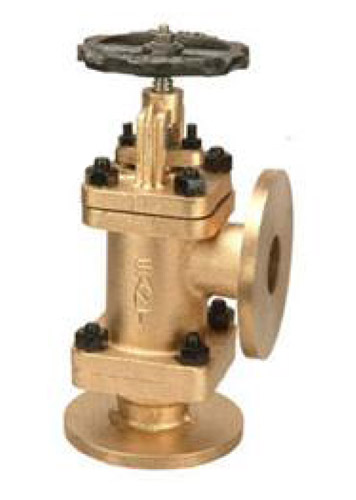

Bronze Accessible Feed Check ValveDouble Clack, Right Angle Pattern, Straight Inlet, Outside Screw & Yoke Type, Rising Stem, Monel / Stainless Steel working parts, Handwheel Operated, Flanged Ends to BS:10 Table H, Suitable for Maximum BOP = 250 Psig
15
Bronze Pressure Gauge CockFitted with Pressure Gauge Coupling Nut and Tail Pipe, Screwed Female Threads BSP, Suitable for Maximum BOP = 250 Psig
16

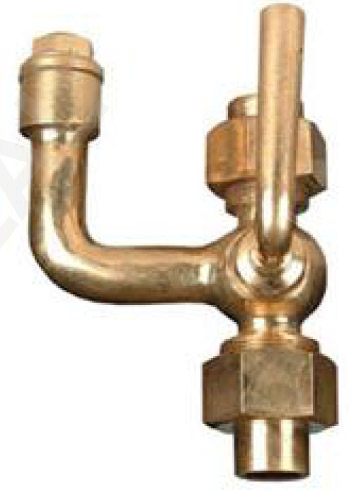

Bronze Inspector's Test Gauge CockBend Threaded 3/4" BSW connection for Inspector's Gauge, Suitable for Maximum BOP = 250 Psig, Maximum recommended Service Temperature 225ºC
17
Bronze Sleeve Packed Water Level Gauge - FlangedAutomatic Shut Off Device in the Water Arm, Flanged Ends as per BS:10 Table H Suitable for Maximum BOP = 250 Psig, Available for Left Hand or Right Hand Mounting, Spare Moulded Sleeves can be supplied on request
18

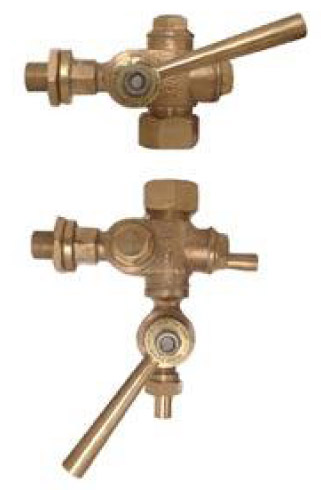

Bronze Sleeve Packed Water Level Gauge - ScrewedAutomatic Shut Off Device in the Water Arm, Screwed Male (BSP) Ends, Suitable for Maximum BOP = 250 Psig, Available for Left Hand or Right Hand Mounting, Spare Moulded Sleeves can be supplied on request
19
Bronze Thermodynamic Steam TrapStainless Steel Trim & Strainer, Screwed Female Ends (BSPT), Suitable for Maximum BOP = 250 Psig (Steam)
20

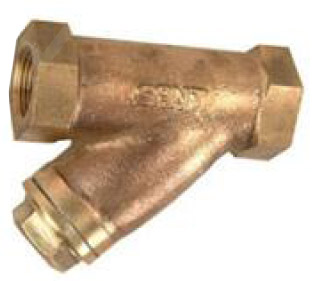

Bronze Y Type Strainer - ScrewedStainless Steel/Brass Perforated Sheet Screen, Screwed Male (BSP) Ends, Suitable for Maximum Steam Pressure 250 Psig, Maximum recommended Service Temperature 225ºC
21
Bronze Y Type Strainer - FlangedStainless Steel/Brass Perforated Sheet Screen, Flanged Ends as per BS:10 Table H, Suitable for Maximum Steam Pressure 250 Psig, Maximum recommended Service Temperature 225ºC
22

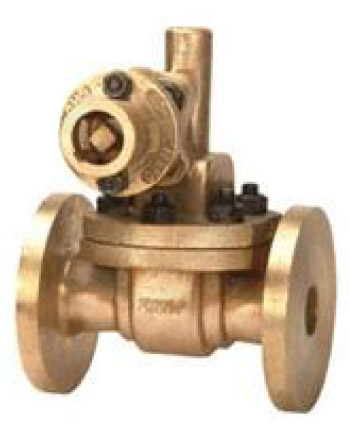

Bronze Parallel Slide Blow Off ValveRack & Pinion Operated, Renewable Monel Seats, Flanged Ends as per BS:10 Table H, Suitable for Maximum BOP = 250 Psig, Supplied with MS operating key
23
Bronze Fusible Plug 1 PC1 Piece Design, Screwed Male (BSPT) end connection, Suitable for Maximum BOP = 250 Psig
24

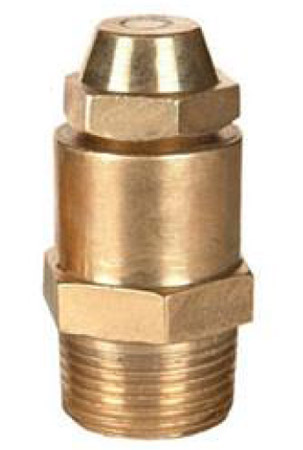

Bronze Fusible Plug 2 PC2 Piece Design, Screwed Male (BSPT) end connection, Suitable for Maximum BOP = 250 Psig
25

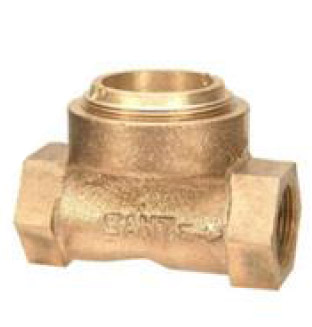

Bronze Sight Glass - ScrewedToughened Glass Single Window upto and including 25mm size, Toughened Glass Double Window for size above 25mm, Screwed Female (BSPT) Ends, Suitable for Maximum BOP = 250 Psig
26

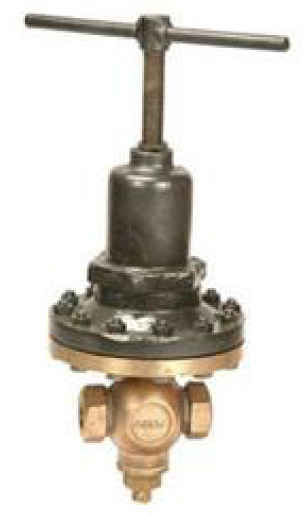

Bronze Pressure Reducing Valve - Diaphragm TypeDirect Spring Loaded, Screwed Female Ends (BSPT)' Suitable for Maximum Inlet Pressure / Temperature = 250 Psig / 225ºC, Outlet Pressure Ranges Available (Psig) = 5/60, 20/80 & 40/125
Cast Iron Valves IBR
01
Cast Iron Globe Steam Stop Valve'SANT' Cast Iron Globe Steam Stop Valve, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Renewable Stainless Steel Trim, Handwheel Operated
02
Cast Iron Junction Steam Stop Valve'SANT' Cast Iron Junction Steam Stop Valve (Right Angle), Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Renewable Stainless Steel Trim, Handwheel Operated
03
Cast Iron Horizontal Lift Check Valve'SANT' Cast Iron Horizontal Lift Check Valve (Non Return), Bolted Bonnet, Renewable Stainless Steel Trim
04
Cast Iron Accessible Feed Check Valve'SANT' Cast Iron Accessible Feed Check Valve, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Renewable Stainless Steel Trim, Handwheel Operated, Without Inspection Branch
05
Cast Iron Accessible Feed Check Valve - With Inspection Branch'SANT' Cast Iron Accessible Feed Check Valve, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Renewable Stainless Steel Trim, Handwheel Operated
06
Cast Iron Y Type Strainer - Flanged'SANT' Cast Iron Y Type Strainer, Stainless Steel/Brass Perforated Sheet Screen, Flanged Ends as per BS:10 Table F, Suitable for Maximum Steam Working Pressure 150 Psig
07
Cast Iron Y Type Strainer - Screwed'SANT' Cast Iron Y Type Strainer, Stainless Steel/Brass Perforated Sheet Screen, Screwed Female Ends (BSP), Suitable for Maximum Steam Working Pressure 150 Psig
08
Cast Iron Single Post Safety Valve'SANT' Cast Iron Single Post Safety Valve, High Lift, Spring Loaded, Monel Seats, Stainless Steel Spindle, Inlet Flanged to BS:10 Table F
09
Cast Iron Double Post Safety Valve'SANT' Cast Iron Double Post Safety Valve, High Lift, Spring Loaded, Monel Seats, Stainless Steel Spindle, Inlet Flanged to BS:10 Table F
Cast Steel Valves IBR
01
Cast Steel Globe Valve ND 40'SANT' Cast Steel Globe Stop Valve, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Renewable Stainless Steel Trim, Handwheel Operated
02
Cast Steel Globe Valve'SANT' Cast Carbon Steel Globe Valve, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Renewable Stainless Steel Trim, Handwheel Operated, Conforming to BS : 18731 975
Class 150
03
Cast Steel Gate Valve'SANT' Cast Carbon Steel Wedge Gate Valve, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Renewable Stainless Steel Trim, Handwheel Operated
Class 150
04
Cast Steel Accessible Feed Check Valve'SANT' Cast Carbon Steel Accessible Feed Check Valve, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Backseat Arrangement, Renewable Stainless Steel/Monel Trim, Straight Inlet, Handwheel Operated
05
Cast Steel Horizontal Lift Check Valve'SANT' Cast Steel Horizontal Lift Check Type Non Return Valve, Bolted Cover, Renewable Stainless Steel Trim, Flanged Ends as per BS:4504 Part 1 Table 40/1 identical to DIN 2545 RF, Nominal Pressure Rating PN 40
06
Cast Steel Swing Check Valve'SANT' Cast Carbon Steel Swing Check Valve, Bolted Bonnet, Renewable Stainless Steel Trim, Flanged Ends as per ANSI B16.5
Class 150
07
Cast Steel Parallel Slide Blow Off Valve'SANT' Cast Carbon Steel Parallel Slide Blow Off Valve, Rack & Pinion Operated, Renewable Monel Seats, Flanged Ends to BS:10 Table J, Suitable for Maximum BOP = 350 Psig
08
Cast Steel Y Type Strainer'SANT' Cast Steel YTyp e Strainer, Perforated Stainless Steel Sheet Screen, Suitable for Maximum Steam Working Pressure 350 Psig Maximum Working Temperature 400ºC
Forged Steel Valves IBR
01
Forged Steel Globe Valve'SANT' Drop Forged Steel Globe Valve, Reduced Bore, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Backseat Arrangement, Stainless Steel Trim, Handwheel Operated
02
Forged Steel Gate Valve'SANT' Drop Forged Steel Wedge Gate Valve, Reduced Bore, Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem, Backseat Arrangement, Stainless Steel Trim, Handwheel Operated
03
Forged Steel Horizontal Lift Check Valve'SANT' Drop Forged Steel Horizontal Lift Check Valve, Reduced Bore, Bolted Bonnet, Stainless Steel Trim, Conforming to BS:5352 Class 800
04
Forged Stainless Steel Thermodynamic Steam Trap'SANT' Forged Stainless Steel Thermodynamic Steam Trap, Built in Strainer, Screwed Female BSPT or SocketW elding Ends as per ANSI B16.11
Gun Metal & Bronze Valves
01
Gun Metal Gate Valve - Screwed Class 1 ISI Marked'SANT' Gun Metal Wedge Gate Valve, Screwed in Bonnet, Inside Screw, Non Rising Stem, Integral Seats, Screwed Female Ends (BSP) to IS:554 1999, Handwheel Operated
02
Gun Metal Gate Valve - Flanged Class 1 ISI Marked'SANT' Gun Metal Wedge Gate Valve, Screwed in Bonnet, Inside Screw, Non Rising Stem, Integral Seats, Handwheel Operated, Flanged Ends
03
Gun Metal Gate Valve - Non Rising Stem, Screwed Class 2 ISI Marked'SANT' Gun Metal Wedge Gate Valve, Screwed in Bonnet, Inside Screw, Non Rising Stem, Integral Seats , Screwed Female Ends (BSP) to IS:554 1999, Handwheel Operated
04
Gun Metal Gate Valve - Non Rising Stem, Flanged Class 2'SANT' Gun Metal Wedge Gate Valve, Screwed in Bonnet, Inside Screw, Non Rising Stem, Integral Seats, Handwheel Operated, Flanged Ends for water application.
05
Gun Metal Globe Valve - Rising Stem, Screwed Class 1 ISI Marked'SANT' Gun Metal Globe Valve,Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seats, Handwheel Operated, Backseat Arrangement for water application.
06
Gun Metal Globe Valve - Rising Stem, Flanged Class 1 ISI Marked'SANT' Gun Metal Globe Valve, Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seats, Handwheel Operated, Backseat Arrangement, Flanged Ends
07
Gun Metal Globe Valve - Rising Stem, Screwed Class 2 ISI Marked'SANT' Gun Metal Globe Valve, Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seats, Handwheel Operated, Backseat Arrangement
08
Gun Metal Globe Valve - Rising Stem, Flanged Class 2'SANT' Gun Metal Globe Valve, Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seats, Handwheel Operated, Backseat Arrangement, Flanged Ends
09
Gun Metal Vertical Lift Check Valve - Screwed Class 1 ISI Marked'SANT' Gun Metal Vertical Lift Check Valve, Integral Seat, Screwed Female Ends (BSP) to IS:554 1999, Conforming to IS:778 1984 Class1, Valves are painted blue
10
Gun Metal Horizontal Lift Check Valve - Screwed Class 1 ISI Marked'SANT' Gun Metal Horizontal Lift Check Valve, Screwed Cover, Integral Seats, Screwed Female Ends (BSP) to IS:554 1999, Conforming to IS:778 1984 Class1, Valves are painted blue
11
Gun Metal Horizontal Lift Check Valve - Flanged Class 1 ISI Marked'SANT' Gun Metal Horizontal Lift Check Valve, Screwed Cover, Integral Seats, Flanged Ends, Conforming to IS:778 1984 Class1, Valves are painted blue
12
Gun Metal Horizontal Lift Check Valve - Screwed Class 2 ISI Marked'SANT' Gun Metal Horizontal Lift Check Valve, Screwed Cover, Integral Seats, Screwed Female Ends (BSP) conforming to IS:5541 999, Conforming to IS:778 1984 Class2, Valves are painted red
13
Gun Metal Horizontal Lift Check Valve - Flanged Class 2 ISI Marked'SANT' Gun Metal Horizontal Lift Check Valve, Screwed Cover, Integral Seats, Flanged Ends, Conforming to IS:778 1984 Class2, Valves are painted red
14
Brass Pressure Reducing Valve'SANT' Pressure Reducing Valve is a kind of direct operating and automatic pressure regulating valve, Sensitive Reducing Pressure & Steady Outlet Pressure, With Strainer, Checks pressure value and regulates valve conveniently & accurately
15
Bronze Pressure Reducing Valve'SANT' Bronze Pressure Reducing Valve, Direct Spring Loaded, Rubber Diaphragm, Screwed Female Ends BSP, Suitable for Water/Air Service
Cast Iron Valves Non IBR
01
Cast Iron Butterfly Valve (Upto 150mm) ISI Marked'SANT' Cast Iron Butterfly Valve, Wafer Type, Rubber Lined Body, Conforming to IS 13095 : 1991, Rating PN 1.0 / Class 125, Regulating Type, Handle Operated, ISI Marked
02
Cast Iron Butterfly Valve (200mm & Above) ISI Marked'SANT' Cast Iron Butterfly Valve, Wafer Type, Rubber Lined Body, Conforming to IS 13095 : 1991, Rating PN 1.0 / Class 125, Regulating Type, Hand Wheel & Gear Box Operated, ISI Marked
03
Cast Iron Butterfly Valve'SANT' Cast Iron Butterfly Valve (Wafer Type)
04
Cast Iron Sluice Valve IS 14846 And ISI Marked'SANT' Cast Iron Sluice Valve, Bolted Bonnet, Inside Screw, Non Rising Stainless Steel (Type 410) Stem, Gunmetal rings, Handwheel operated Conforming to IS 14846 : 2000 , Rating PN 1.0/PD Type
05
Cast Iron Sluice Valve IS 78019'SANT' Cast Iron Sluice Valve, Bolted Bonnet, Inside Screw, Non Rising Stem, Flanged Ends Rating PN 1.0, Handwheel Operated
06
Cast Iron Dual Plate Wafer Type Check Valve'SANT' Cast Iron Dual Plate Wafer Type Check Valve, Rating PN16 with ductile iron disc, Stainless steel spring, EPDM body lining
Ball Valves, Strainers, Air Vent & Needle Valves
01
SANT Forged Brass Ball ValveWith Teflon seat and seals, MS Plate Handle with PVC Sleeve, Screwed Female Ends BSP, Rating PN25,
Suitable for 25 kg/cm²g, WOG at ambient temperature
02
ITAP Forged Brass ValvesBody in nickel plated brass, Lever handle is steel, Minimum and maximum working temperatures -20ºC ,60ºC.
03

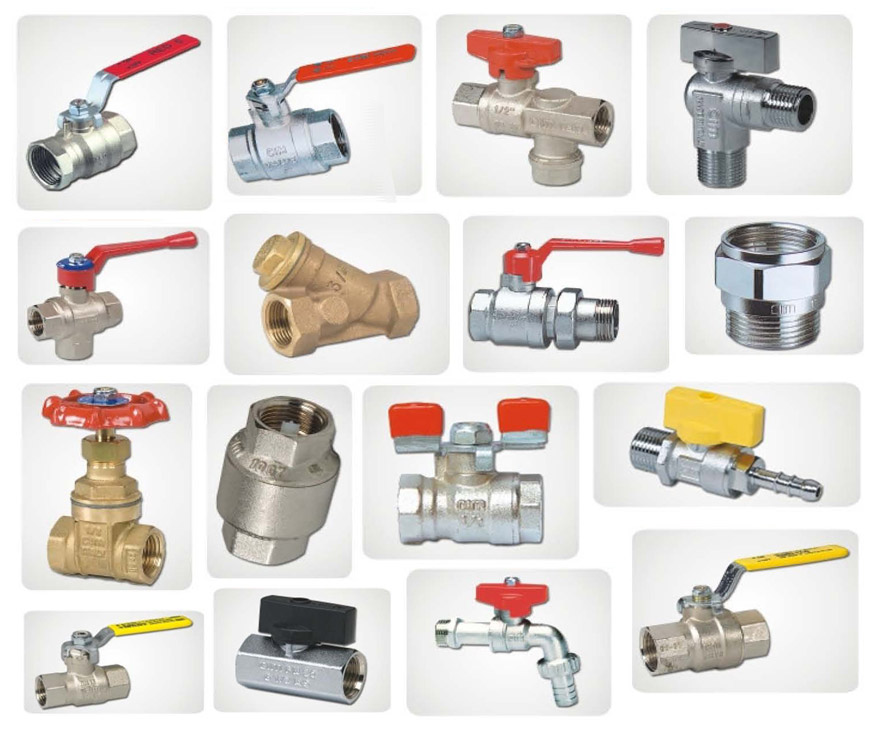

CIMBERIO Forged Brass ValvesCimberio Range of Forged Brass Valves
04
C.I. Ball Valve 1PC Design F/E1 Piece Full Bore, Blow Out Proof Stem Floating Ball, Fire /Non Fire Safe Design, Screwed to BSP / BSPT / NPT FEMALE Threads, Socket Weld Ends to ANSI-B-16.11
05

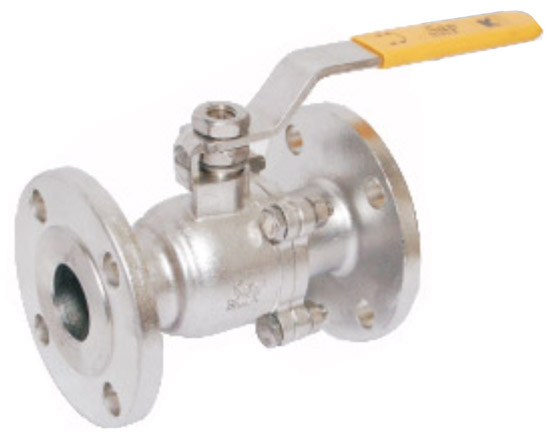

C.I. Ball Valve 2PC Design F/ESap Mark Cast Steel Ball Valves have been designed to meet the requirements, BS 5351/ASME B 16.34 / API 6D /API 608/MSS SP 72, Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 /API 6D/ DIN
06

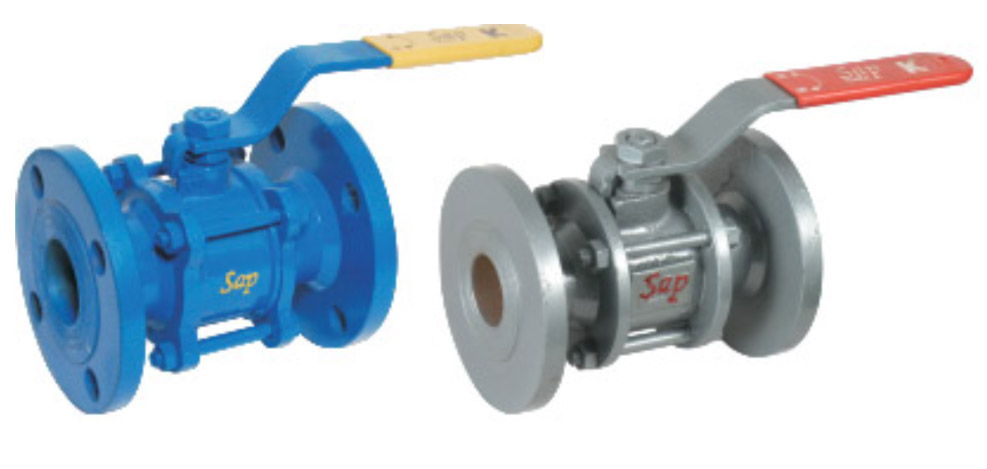

C.I. Ball Valve 3PC Design F/ESap Mark Cast Steel Ball Valves have been designed to meet the requirements BS, 5351/ASME B 16.34 / API 6D / API 608 / MSS SP 72, Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / API 6D / DIN
07

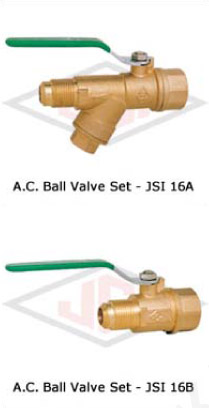

A.C. Ball Valve Setwith strainer & without strainer are manufactured as per ISO 9001 & can be used in Industrial Air Conditioning. Sizes Available : 3/4 x 5/8, 1" x 5/8.
08
Forged Brass StrainerFemale/female threads and inspection plug, Body in brass, Filtration degree: 1/4" through 2" 500 µm 2"1/2, 3" and 4" 800 µm
09
Automatic Air Vent/Purge ValveBody in nickel plated brass, Float in polyethilenic resin, O-ring in NBR. Maximum working temperature 110ºC.
